21. Introduction#

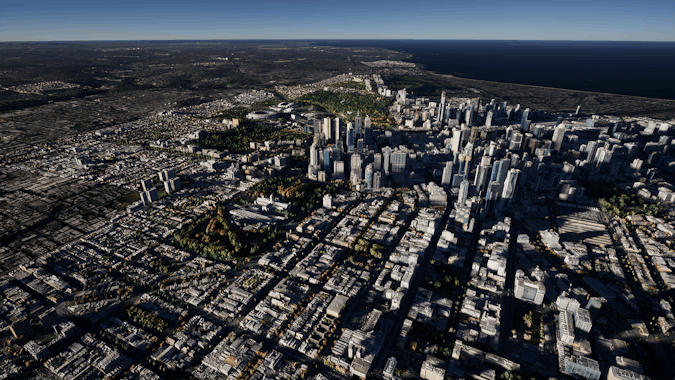

Cesium is an open-source JavaScript library for creating 3D globes and maps. It allows developers to build interactive web-based applications with high-performance rendering of geospatial data. Cesium is particularly renowned for its capability to visualize large-scale, time-dynamic, and geographically

  • It requires support of WebGL

  • Based on Apache 2.0 license

21.1. Support Data Format#

  • GeoJSON: A lightweight format for encoding geospatial data using JSON (JavaScript Object Notation).

  • KML (Keyhole Markup Language): An XML-based format for expressing geographic annotation and visualization within Internet-based maps and Earth browsers.

  • CZML (Cesium Language): A JSON-based format specifically designed for Cesium, allowing developers to describe time-dynamic scenes in Cesium applications.

  • 3D Tiles: A format for streaming massive heterogeneous 3D geospatial datasets, enabling efficient visualization of large-scale 3D content such as terrain, buildings, and point clouds.

  • Tileset: Cesium supports various tileset formats for efficiently rendering large-scale datasets, including formats like quantized-mesh, 3D Tiles, and terrain tiles.

  • STL (Stereolithography): A file format native to the stereolithography CAD software used for creating 3D models, commonly used for representing 3D geometry in Cesium applications.

  • COLLADA (COLLAborative Design Activity): A 3D model interchange format for exchanging digital assets between different graphics software applications, often used for importing 3D models into Cesium scenes.

  • OBJ (Wavefront .obj file): A simple text-based format for representing 3D models, suitable for importing into Cesium applications for visualization.

  • GML (Geography Markup Language): An XML-based encoding for the transport and storage of geographic information, supported in Cesium for interoperability with GIS systems.

21.2. Cesium in developing#

21.3. Learning component for Cesium#


21.4. Cesium Environment setting#

  1. Node.js and npm: Cesium development requires Node.js, which includes npm (Node Package Manager), for managing dependencies and running scripts. You can download and install Node.js from here.

    • Use node --version to check whether you install Node.js successfully

  2. Create a New Project

    1. First, create a new directory for your Cesium project. You can do this using the command line:

    mkdir cesium-project
cd cesium-project

    1. Next, initialize a new npm project in the project directory: npm init -y

    This command creates a package.json file with default settings.

    1. Install Cesium as a dependency using npm: npm install cesium

    This command installs the Cesium library and adds it as a dependency in your package.json file.

!node --version

v14.17.6

!mkdir cesium-project
!cd cesium-project
!npm init -y
!npm install cesium

Wrote to e:\2024\github\gis\Cesium\package.json:

{
  "name": "Cesium",
  "version": "1.0.0",
  "description": "",
  "main": "index.js",
  "scripts": {
    "test": "echo \"Error: no test specified\" && exit 1"
  },
  "keywords": [],
  "author": "",
  "license": "ISC"
}



> protobufjs@7.2.6 postinstall e:\2024\github\gis\Cesium\node_modules\protobufjs
> node scripts/postinstall

+ cesium@1.116.0
added 39 packages from 79 contributors and audited 39 packages in 3.968s
found 0 vulnerabilities

npm notice created a lockfile as package-lock.json. You should commit this file.
npm WARN notsup Unsupported engine for @zip.js/zip.js@2.7.41: wanted: {"deno":">=1.0.0","node":">=16.5.0","bun":">=0.7.0"} (current: {"node":"14.17.6","npm":"6.14.15"})
npm WARN notsup Not compatible with your version of node/npm: @zip.js/zip.js@2.7.41
npm WARN Cesium@1.0.0 No description
npm WARN Cesium@1.0.0 No repository field.

  1. Create an HTML file in your project directory.

    • This file will serve as the entry point for your Cesium application:

    • Open index.html in a editor and add the following content:

    <!DOCTYPE html>
<html lang="en">
  <head>
    <meta charset="UTF-8" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <title>Cesium Example</title>
    <style>
      /* Add any custom styles here */
      #cesiumContainer {
        width: 100%;
        height: 100%;
      }
      body,
      html {
        margin: 0;
        padding: 0;
        overflow: hidden;
        height: 100%;
      }
    </style>
  </head>
  <body>
    <div id="cesiumContainer"></div>
    <script src="./node_modules/cesium/Build/Cesium/Cesium.js"></script>
    <script>
      // Your Cesium code goes here
      var viewer = new Cesium.Viewer("cesiumContainer");
    </script>
  </body>
</html>

    • This HTML file sets up a basic webpage with a container div for the Cesium viewer and includes the Cesium library via a script tag.
